Kubernetes Maintenance Page
-

Kubernetes Maintenance Page

October 30, 2022
Categories:
Tutorial
Tags:
Kubernetes Docker

TL;DR: Need to set up a quick maintenance page for a service hosted in Kubernetes? You can create a custom page and host it with nginx without even needing a custom container image!

A gist containing the full code can be found here: LINK

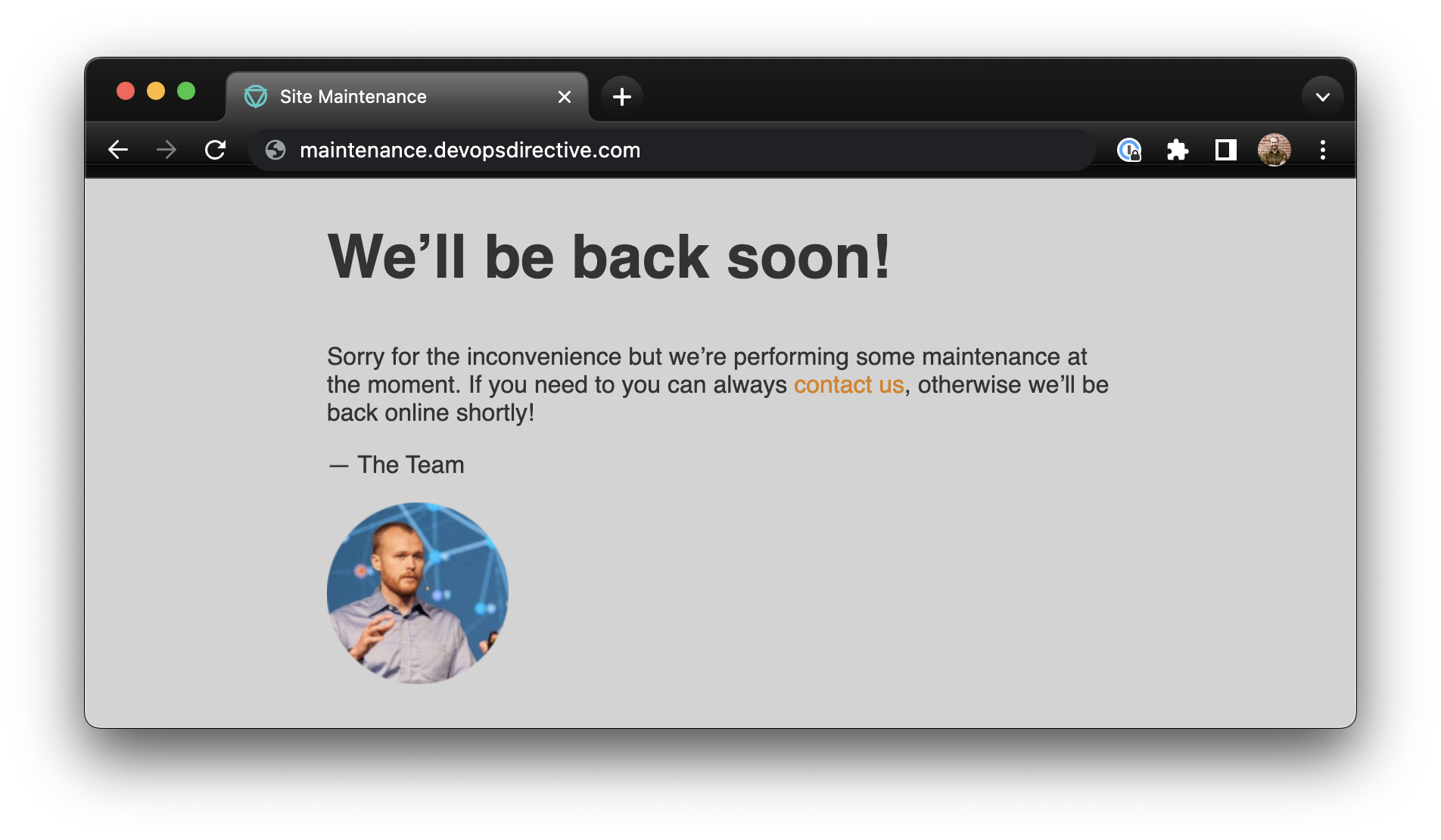

images/maintenance-page-screenshot.png

Table of Contents:

Why?

While it is usually best to attempt to avoid downtime for your production services, sometimes downtime is unavoidable (or at least not worth the effort to avoid). I recently had a Kubernetes-based project that called for a maintenance period, and this is the solution I came up with. The two key attributes I wanted to achieve were:

  • Easy + fast to toggle on/off (I wanted to avoid needing a DNS update because caching can cause them to be slow and unpredictable)
  • No additional container image required (Every time you build a custom container image, it is one more thing to maintain, host in a registry, etc…)

How?

To achieve these goals I used the default nginx image and took advantage of the fact that ConfigMaps can be mounted as volumes to inject my HTML, CSS, and nginx configuration into the pod at runtime!

This gives me an easy way to serve the maintenance page and then a minor change to my Ingress definition will route traffic to/away from it.

Nginx Configuration

I StackOverflow copy/pasted my way to the following default.conf nginx configuration which will take all requests (except for png|jpg|jpeg|css filetypes) and route them to the maintenance page located at /usr/share/nginx/html/maintenance/maintenance.html, returning the proper 503 Service Unavailable HTML code:

# default.conf
server {
  listen 80 default_server;
  server_name  _ ;

  location / {
    if (-f /usr/share/nginx/html/maintenance/maintenance.html) {
      return 503;
    }
  }

  # for all routes, return maintenance page
  error_page 503 @maintenance;
  location @maintenance {
    root    /usr/share/nginx/html/maintenance/;
    rewrite ^(.*)$ /maintenance.html break;
  }

  # allow images and css to be retrieved
  location ~* \.(png|jpg|jpeg|css) {
    root /usr/share/nginx/html/maintenance/;
  }
}

Kubernetes resources

ConfigMap

I created a ConfigMap containing the site files (HTML + CSS) and nginx default.conf file:

apiVersion: v1
kind: ConfigMap
metadata:
  name: maintenance-page
data:
  maintenance.html: |-
        <!--HTML GOES HERE-->
  maintenance.css: |-
        /* CSS GOES HERE */
  default.conf: |-
        # NGINX CONFIGURATION GOES HERE

Deployment

I then created a Deployment which mounts this ConfigMap to achieve the desired effect:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: maintenance-page
  labels:
    app: maintenance-page
spec:
  replicas: 1
  selector:
    matchLabels:
      app: maintenance-page
  template:
    metadata:
      labels:
        app: maintenance-page
    spec:
      containers:
      - name: nginx
        image: nginx:1.23
        ports:
        - containerPort: 80
        volumeMounts:
        # Because no subPath is specified, all keys in configmap will
        # be mounted as files at the specified mountPath
        - name: config-volume
          mountPath: /usr/share/nginx/html/maintenance/
        - name: config-volume
          mountPath: /etc/nginx/conf.d/default.conf
          subPath: default.conf
      volumes:
        - name: config-volume
          configMap:
            name: maintenance-page

Service & Ingress

All that remained were the Service and Ingress objects to route traffic to this Deployment’s pod (Note: the cluster is using the nginx ingress controller):

apiVersion: v1
kind: Service
metadata:
  name: maintenance-page
spec:
  selector:
    app: maintenance-page
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  annotations:
    kubernetes.io/ingress.class: nginx
    nginx.org/rewrites: serviceName=maintenance-page rewrite=/;
  name: maintenance-page
spec:
  rules:
  - host: maintenance.devopsdirective.com
    http:
      paths:
      # Can also set this up only for specific paths
      - path: /
        pathType: Prefix
        backend:
          service:
            name: maintenance-page
            port:
              number: 8080
      # Can still have other paths defined

To turn on maintenance mode, I apply these resources to the cluster and to turn it off, I reapply the previous Ingress definition. The ConfigMap/Deployment/Service could be deleted, or the Deployment scaled to zero replicas if it will be used again in the future!

If you already have an nginx based deployment in the cluster, you could instead incorporate this configuration into it, but I like the fact that this is a standalone setup completely isolated from the standard config.

If you need to have a maintenance window for some services running in your cluster hopefully this helps make things easier for you!
